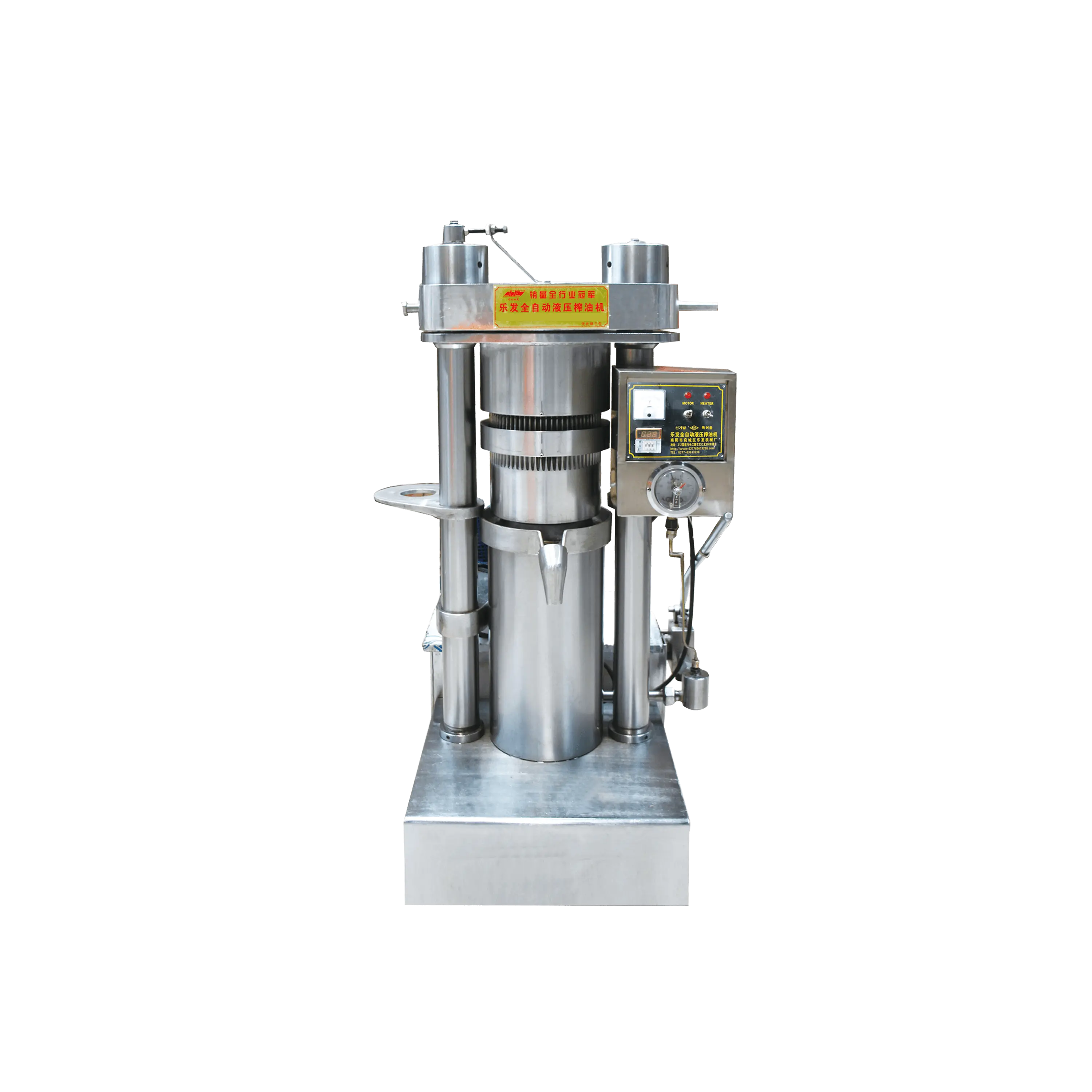

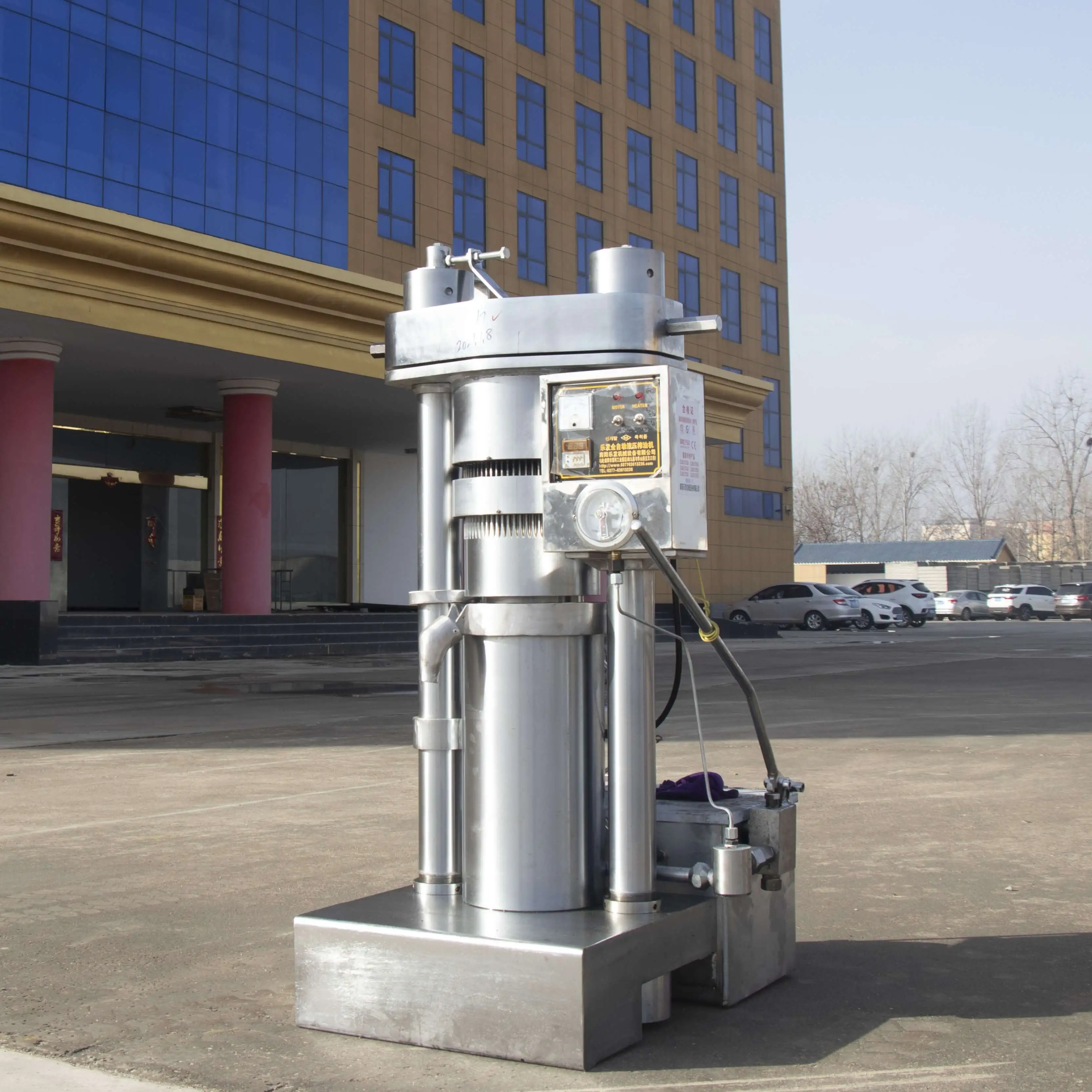

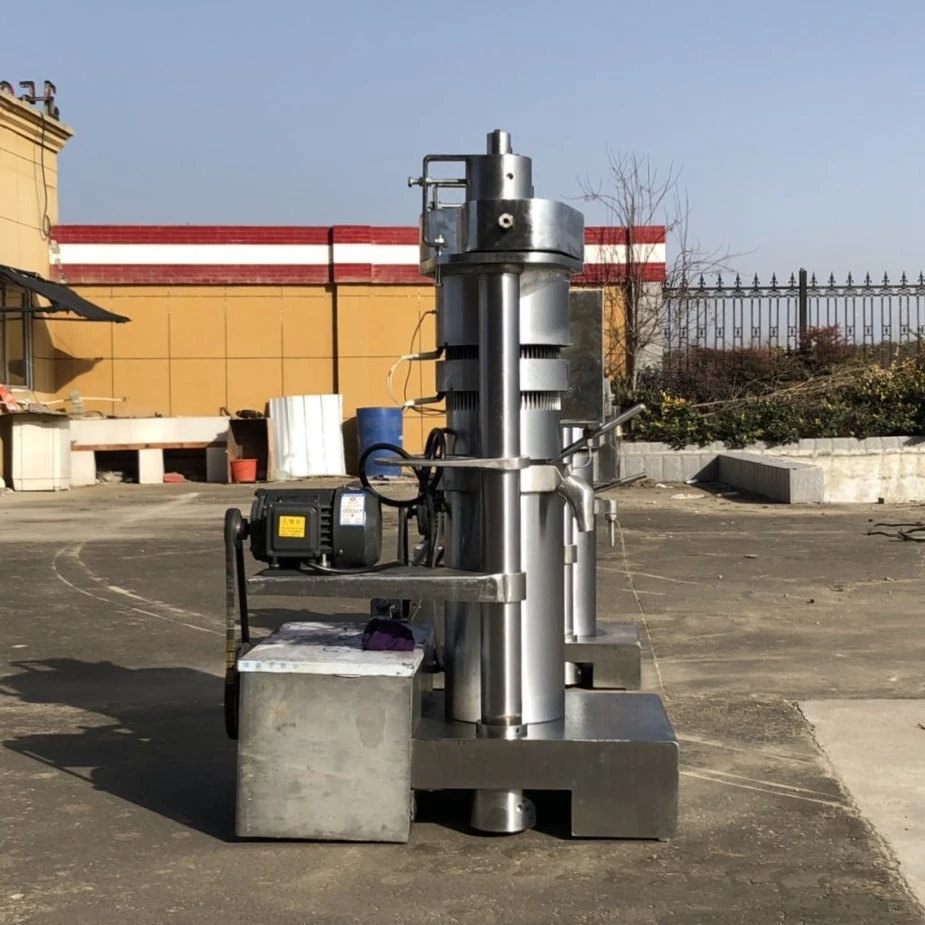

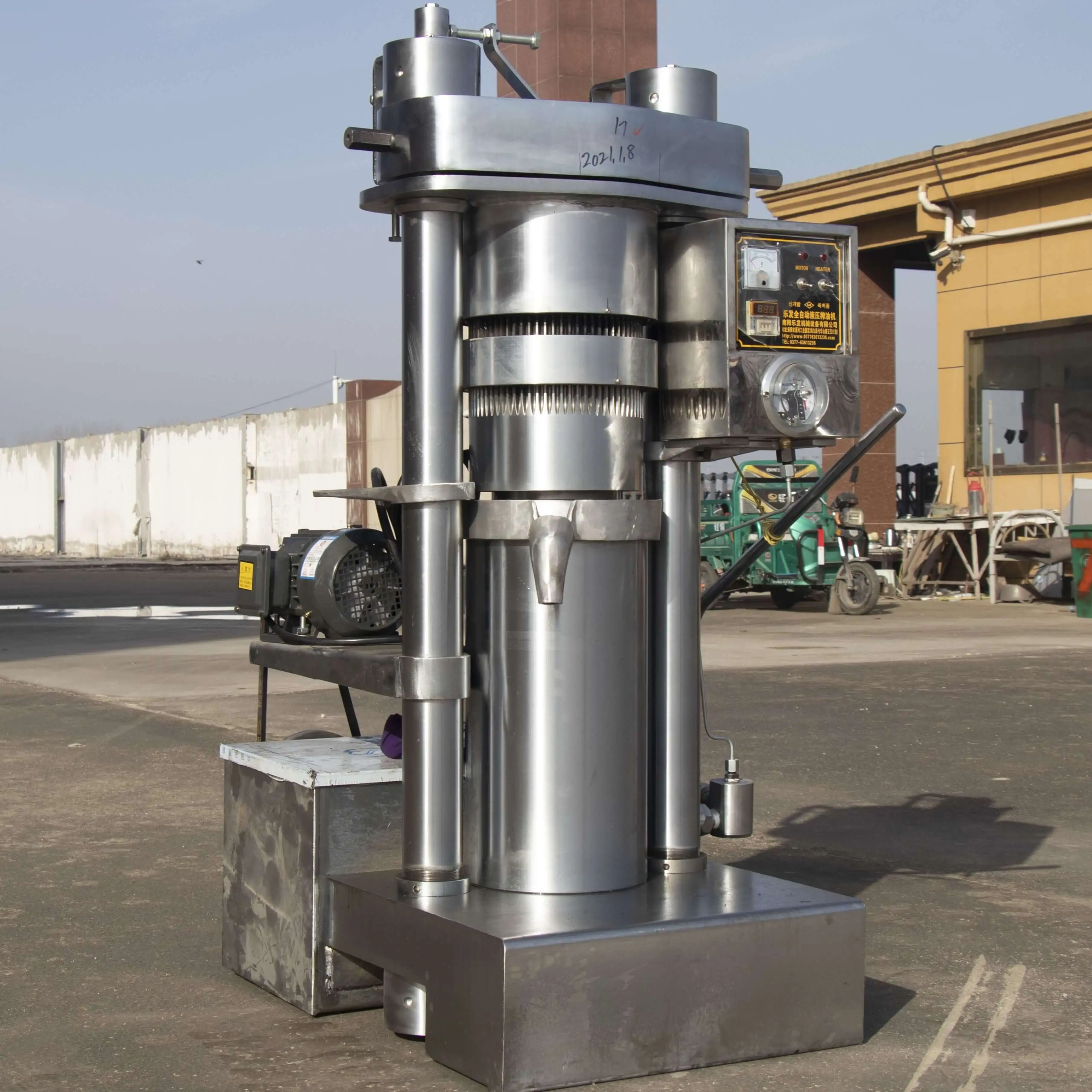

6YY-230B Hydraulic Oil Presser
Model:6YY-230B
Dimensions:670*950*1560mm
Weight:950kg
Power:2.2kw/1.1kw
Voltage:220v/380v
Oil Cake Diameter:230mm
Cylinder Volume:18.2L
Working Pressure:60mpa
Capacity:9.5kg/batch
2.Materials:
Sesame,Peanut,Sunflower,Walnut,Macadamia,Hemp seed,Cocoa bean,Pine nuts,Cashew nuts,Perilla seeds,Safflower seed,Passion fruit seeds,Coconut,Sacha inchi,Prickly ash seedonion seeds,Flaxseed,Rapeseed,Castor,Avocado,Custard apple seeds,Chest nut,Neem,Mango kernel, and so on.
3.Introduction:
Designed for premium oil quality and operational safety, this model features a high-precision CNC-cut 0.36mm oil line and advanced oil circuit technology, ensuring oil is filtered directly to cooking-grade purity and fragrance. Its comprehensive 5-class safety protection system, including automatic pressure release valves, guarantees absolute safety. The stainless steel electrical cabinet utilizes high-quality domestic components for an attractive look and low failure rate. With a maximum pressure of 60 MPa, it thoroughly processes materials like macadamia, coconut, and avocado.
6YY-230B Hydraulic Oil Presser - Premium Oil Extraction Solution
Products Overview
Looking for a reliable and efficient oil extraction solution? The 6YY-230B Hydraulic Oil Presser from Lewin Industrial Development delivers exceptional performance for small to medium-scale oil production. This progressed water powered press combines cutting-edge innovation with strong development to guarantee most extreme oil surrender and operational security. Whether you're preparing sesame, peanuts, walnuts, or other oil-rich materials, this machine gives steady, high-quality comes about that meet commercial standards.
Basic Parameter
| Specification | Value |
|---|---|
| Model | 6YY-230B |
| Dimensions | 670×950×1560mm |
| Weight | 950kg |
| Power | 2.2kw/1.1kw |
| Voltage | 220V/380V |
| Oil Cake Diameter | 230mm |
| Cylinder Volume | 18.2L |
| Working Pressure | 60MPa |
| Capacity | 9.5kg/batch |
Products Features
Our hydraulic oil presser stands out with its innovative design and advanced features:

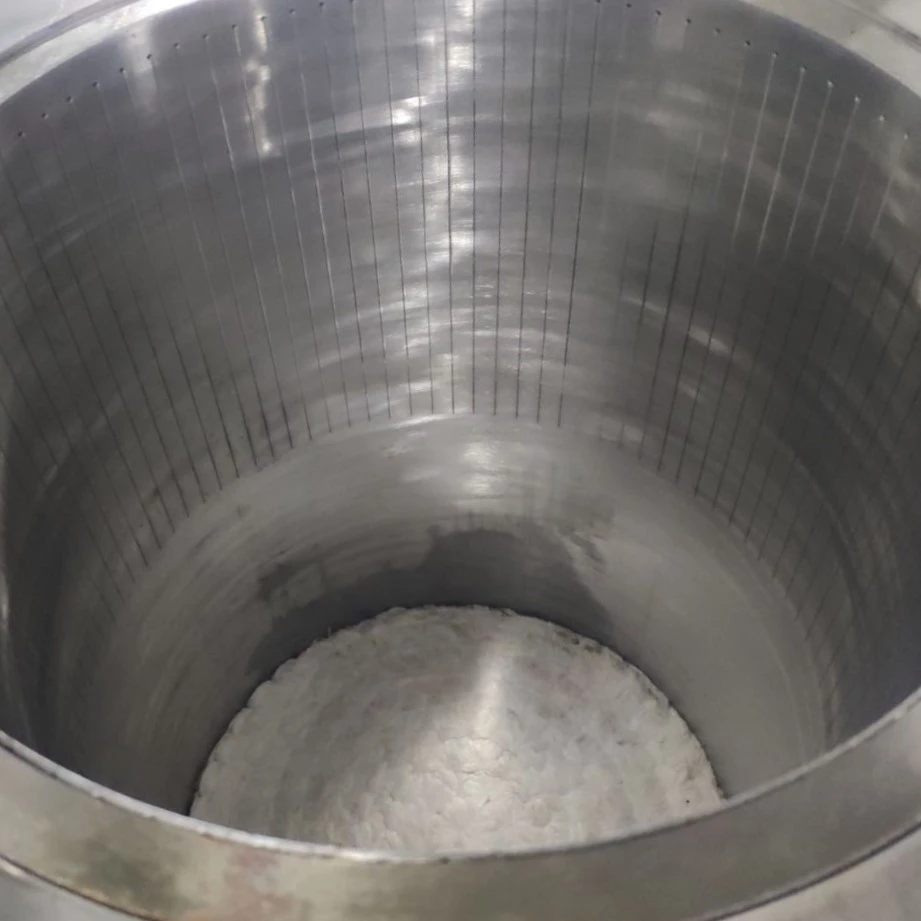

High-Precision Oil Lines: CNC-cut 0.36mm oil channels ensure superior oil filtration and purity
Dual Voltage Operation: Compatible with both 380V and 220V power systems for versatile installation
Stainless Steel Control Cabinet: Premium domestic components ensure reliability and attractive appearance
Chrome-Plated Main Unit: Uniform coating provides excellent durability and corrosion resistance

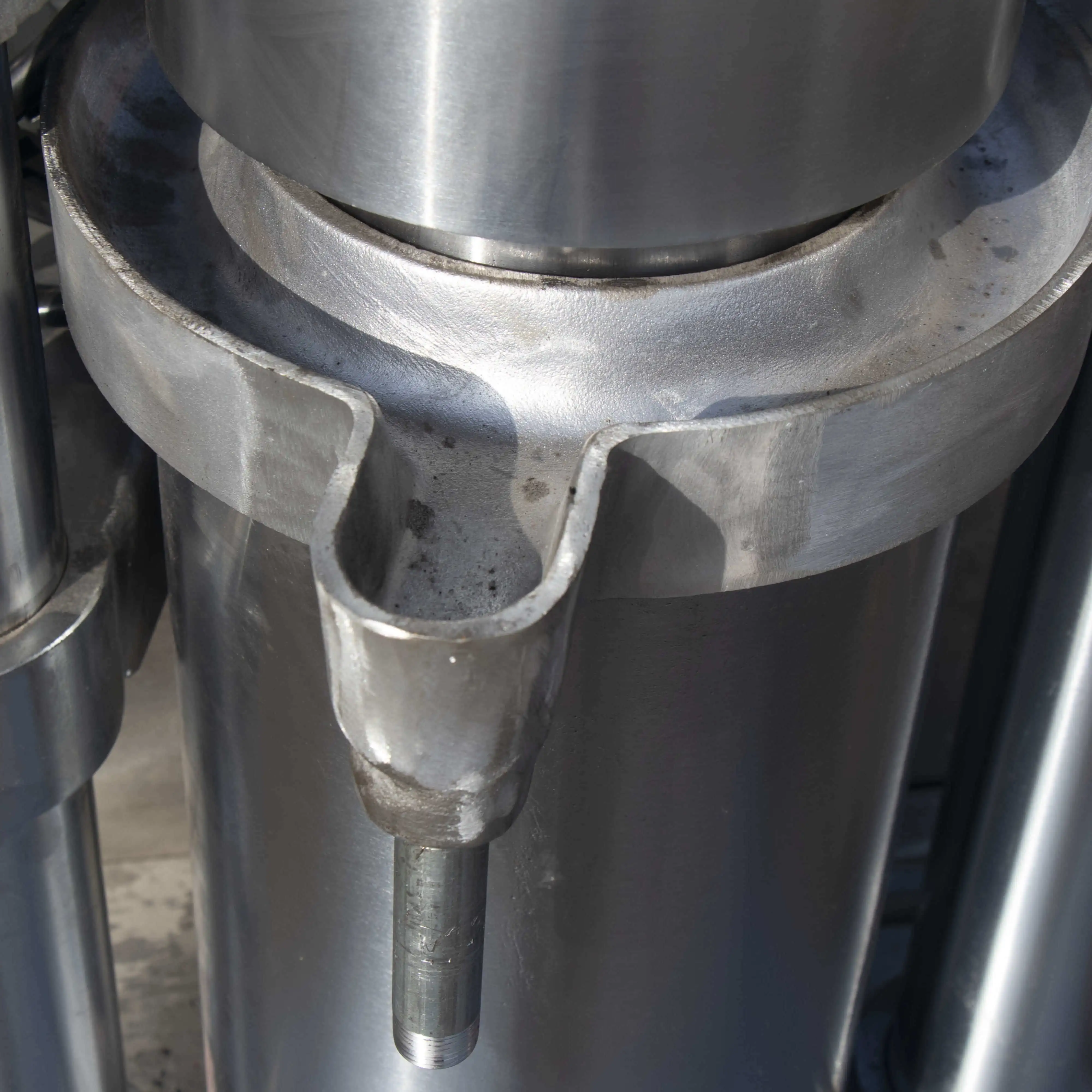

Upper and Lower Oil Lines: Increased oil channels enhance extraction efficiency while maintaining structural strength
Products Advantages
Advantage
Quaerimus socium cooperantem ad res nostras dilatandas.
Needs
The 6YY-230B Hydraulic Oil Presser offers numerous benefits for your oil production needs:
Superior Pressure Performance:
With 60MPa working pressure - significantly higher than standard industry levels (45-55MPa) - this machine achieves exceptional oil extraction rates.
Intelligent Control System:
Real-time temperature and pressure monitoring with adjustable settings optimize extraction for both hot and cold pressing applications.
All-Season Efficiency:

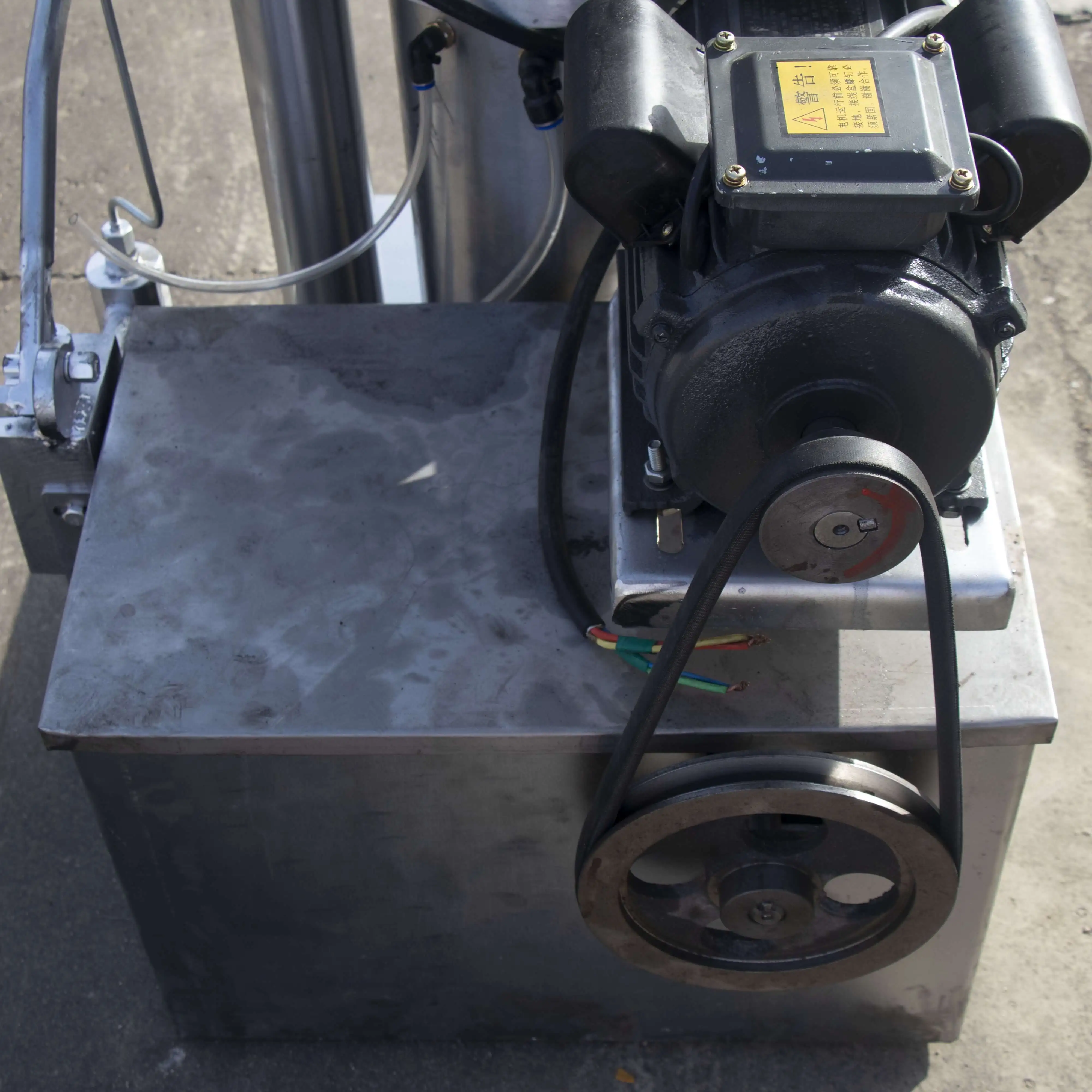

Internal temperature control components solve winter low-yield problems, while the pure copper motor ensures continuous 24/7 operation capability.
Maximum Safety:
Five-class safety protection system includes automatic pressure release valves and reinforced components for complete operator protection.
Premium Oil Quality:
Advanced filtration technology delivers cooking-grade oil purity and natural fragrance directly from extraction.
Products Description
Materials and Applications
This versatile machine processes a wide variety of oil-bearing materials:
Cell Phone Technology
Suitable Materials: Sesame, peanuts, sunflower seeds, walnuts, macadamia nuts, hemp seeds, cocoa beans, pine nuts, cashews, perilla seeds, safflower seeds, passion fruit seeds, coconut, flaxseed, rapeseed, avocado, and many more.

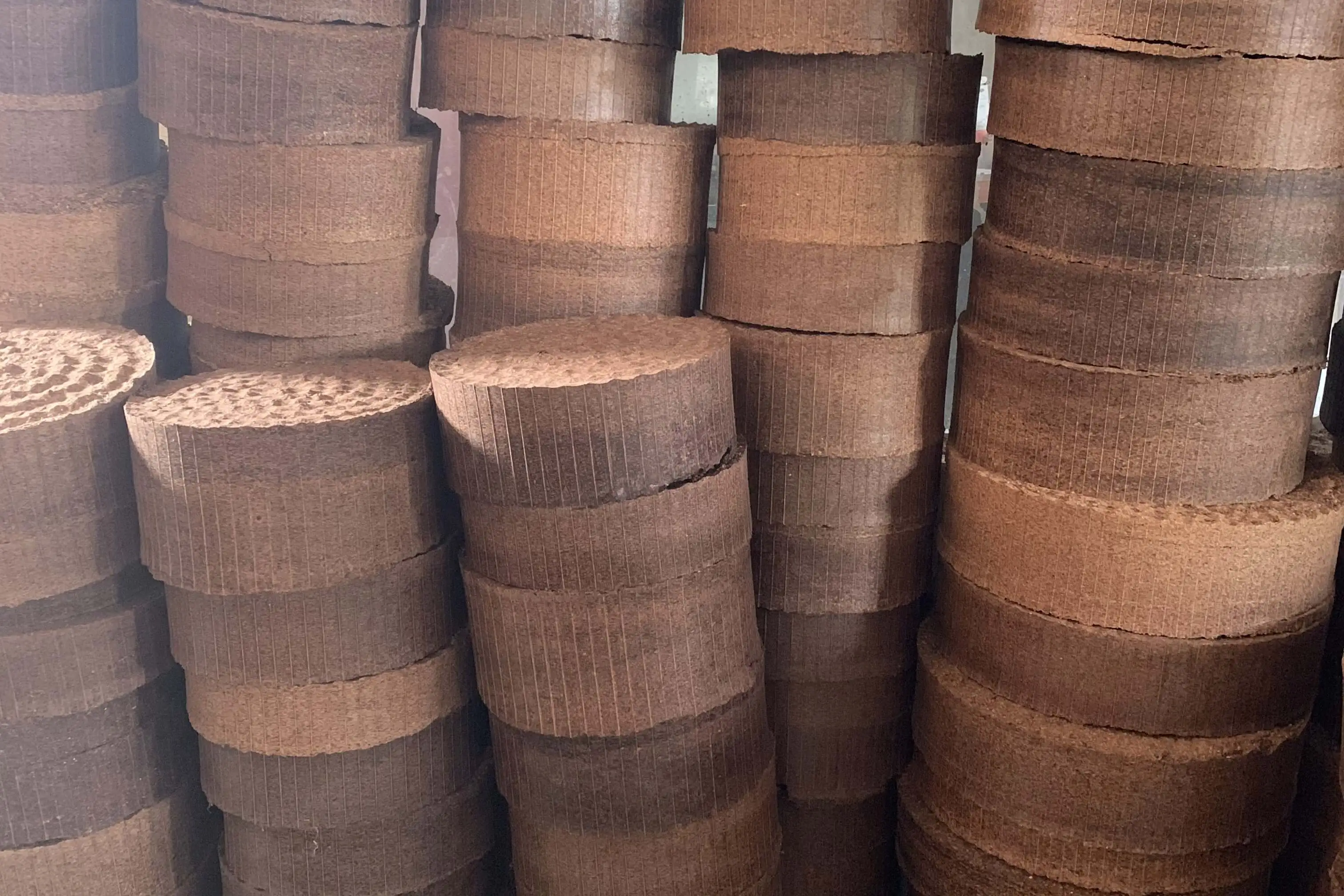

Oil Cake Applications:
High-protein animal feed for livestock and aquaculture
Organic fertilizer rich in nitrogen, phosphorus, and potassium
Biomass fuel pellets for energy generation
Industrial raw materials for chemical processing
Food industry ingredients after secondary processing

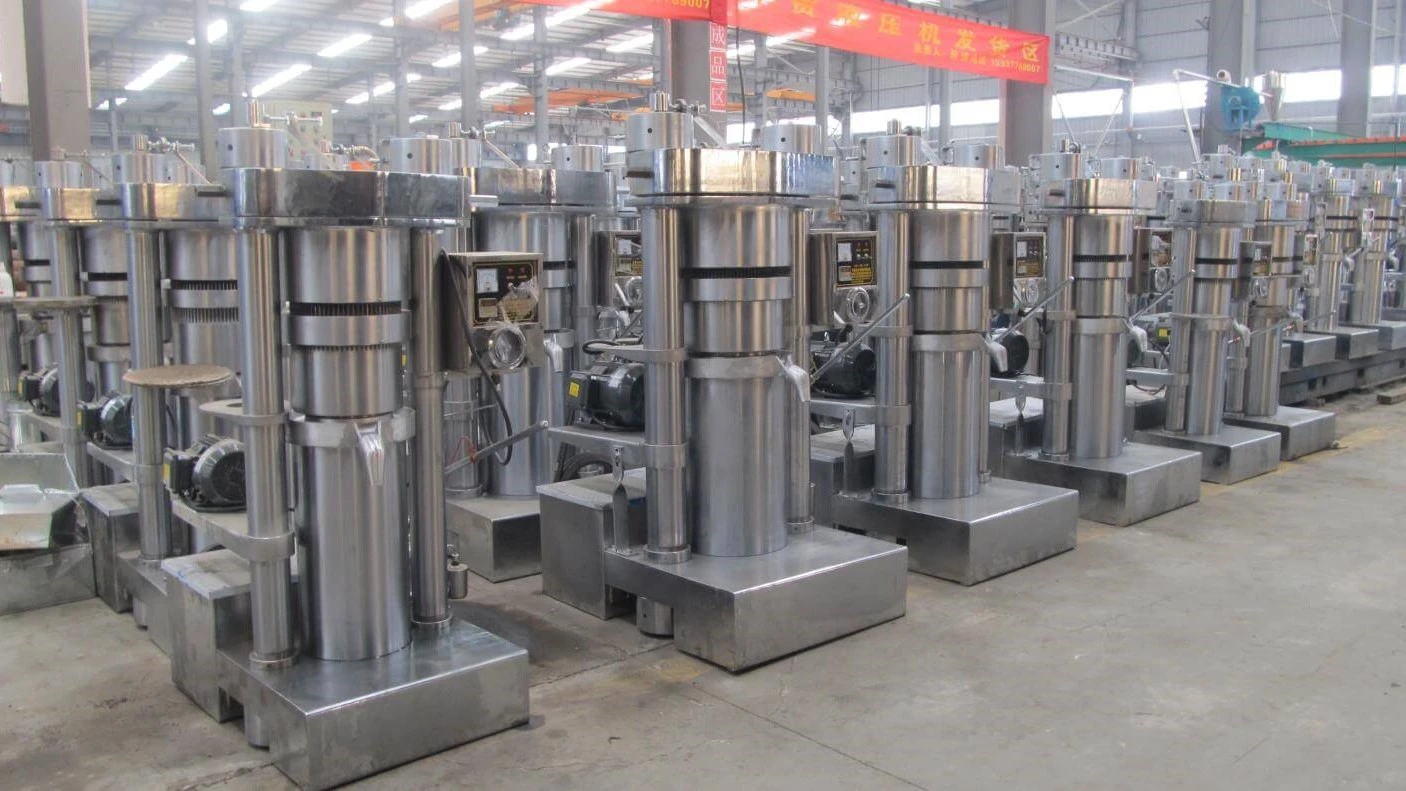

Quality Control
Lewin maintains strict quality standards throughout production. Every 6YY-230B Hydraulic Oil Presser undergoes rigorous testing before shipment. Our ISO9001 Quality Management System certification and national patent (ZL200530100110.7) demonstrate our commitment to excellence.
All production procedures include self-inspection, spot-checking, and final factory inspection to ensure your machine meets specifications.
Maintenance and Repair
Proper maintenance ensures optimal performance:
- Use 46# hydraulic oil in winter, 68# in summer
- Never mix cooking oil with hydraulic oil
- Regularly clean oil lines and remove cake residue

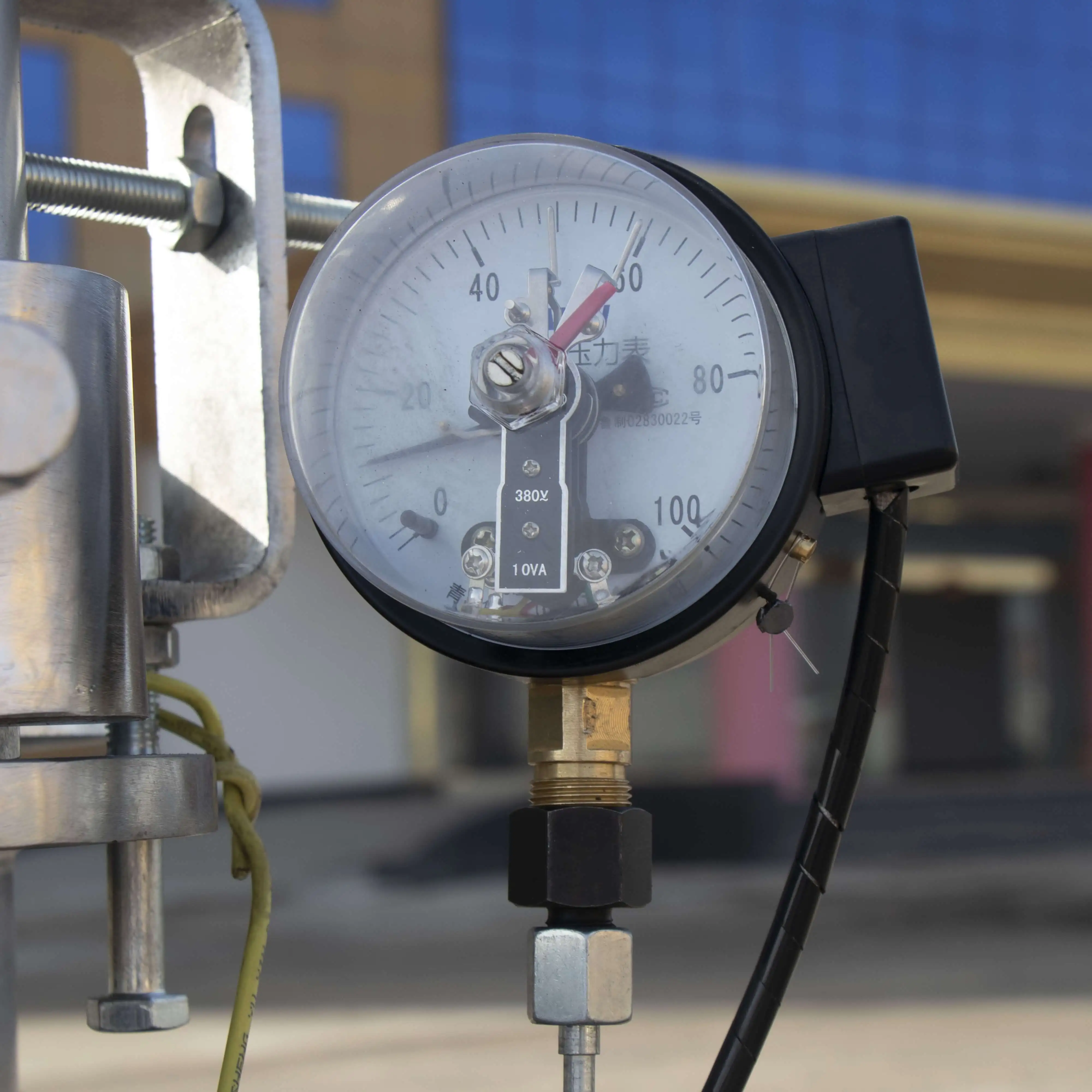

- Replace pressure gauges carefully to maintain accuracy
- Clean internal oil pan and drain plate regularly

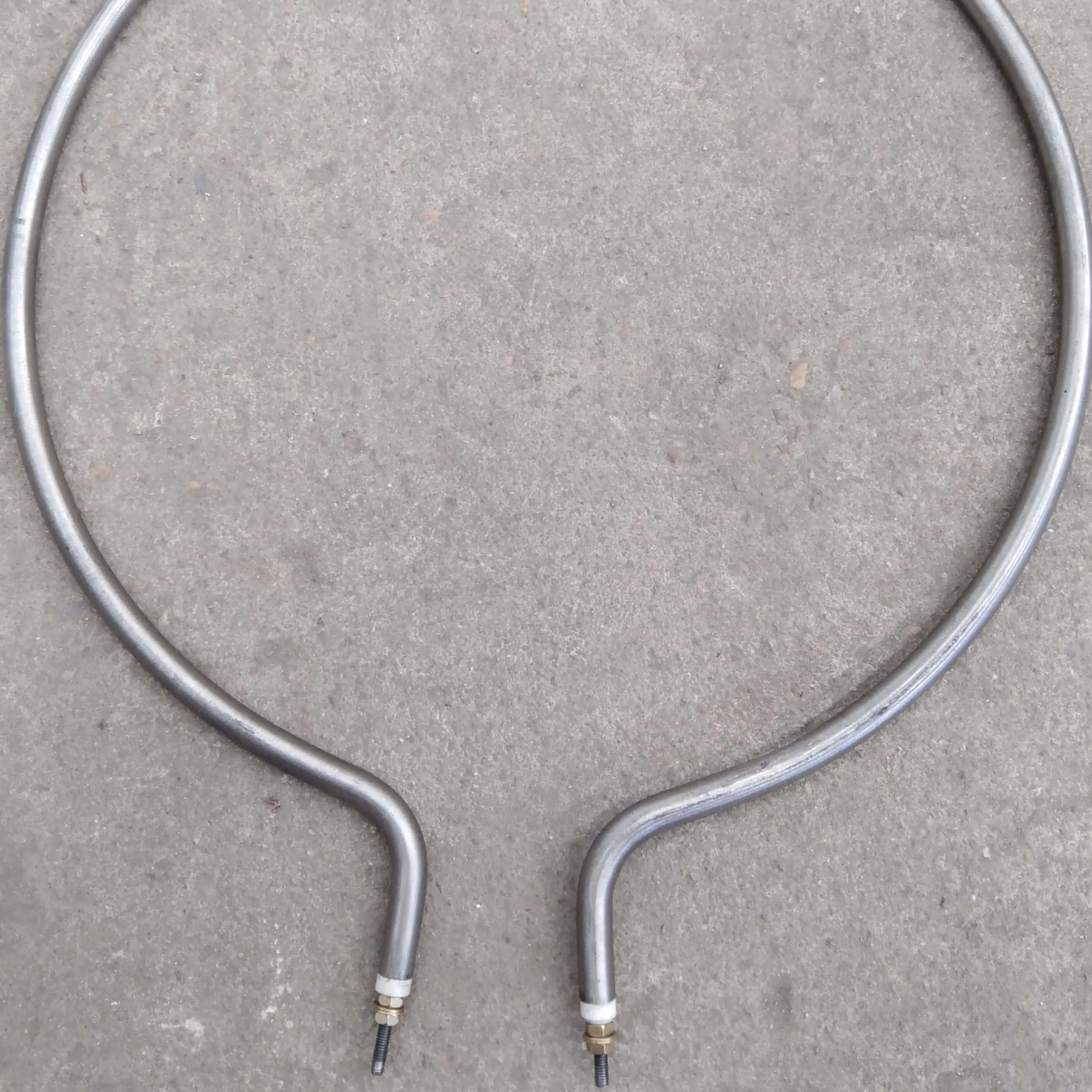

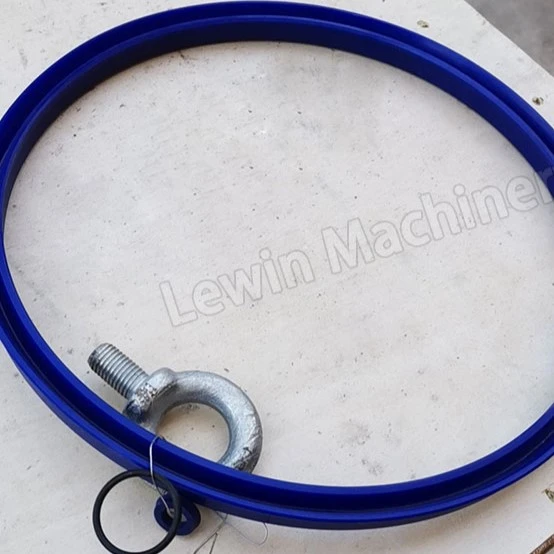

Replacement Parts: O-rings, electric contact pressure gauge, heating tube, cotton pads, oil seals
Packaging and Transportation
Our Shipping Partner
Your machine receives premium protection during shipping. We use waterproof double film and export-standard fumigation-free wooden boxes.
Anti-rust oil application prevents corrosion during transport. Custom packaging available upon request.
Shipping Options: We partner with major carriers including DHL, UPS, FedEx, Maersk, MSC, and COSCO for reliable global delivery.
After-Sales Service and Support
Comprehensive support ensures your success:
Pre-Sale: Free testing, consultation, technical support, factory layout planning, and customized solutions
Warranty: One-year comprehensive scope with free parts and upkeep (barring client blunder or constrain majeure)
Technical Back: 24/7 accessibility with 30-second call pickup and 15-minute crisis response
Service: Engineer video diagnosis, field maintenance options, and dedicated account management
OEM and Customization Services
Our experienced plan and R&D group, supported by college assets, gives customized arrangements. We acknowledge OEM orders and can adjust details to meet your one of a kind necessities. Production line visits welcome for talking about custom applications.
About Us
Service Philosophy and Company Strength
With 28 years of manufacturing experience and 21 years in machinery exports, Lewin follows the principle of "customer first, quality first, service first." Our integrated production and sales teams ensure consistent quality and responsive service. We maintain complete spare parts inventory for immediate support and offer lifetime repair services for all registered customers.
Factory Area
Talents
Product Categories
Exporting Countries
FAQ
Q: Can this machine handle coconut and macadamia processing?
A: Yes, the 60MPa pressure thoroughly processes hard materials like coconut and macadamia nuts.
Q: What's the oil yield rate?
A: Yield varies by material and processing conditions, but our high-pressure system ensures maximum extraction efficiency.
Q: Is installation support available?
A: Yes, we provide installation services and comprehensive video guides in 10+ languages.
Q: How often should I replace hydraulic oil?
A: Regular replacement based on usage frequency. Use seasonal-appropriate oil grades for optimal performance.
