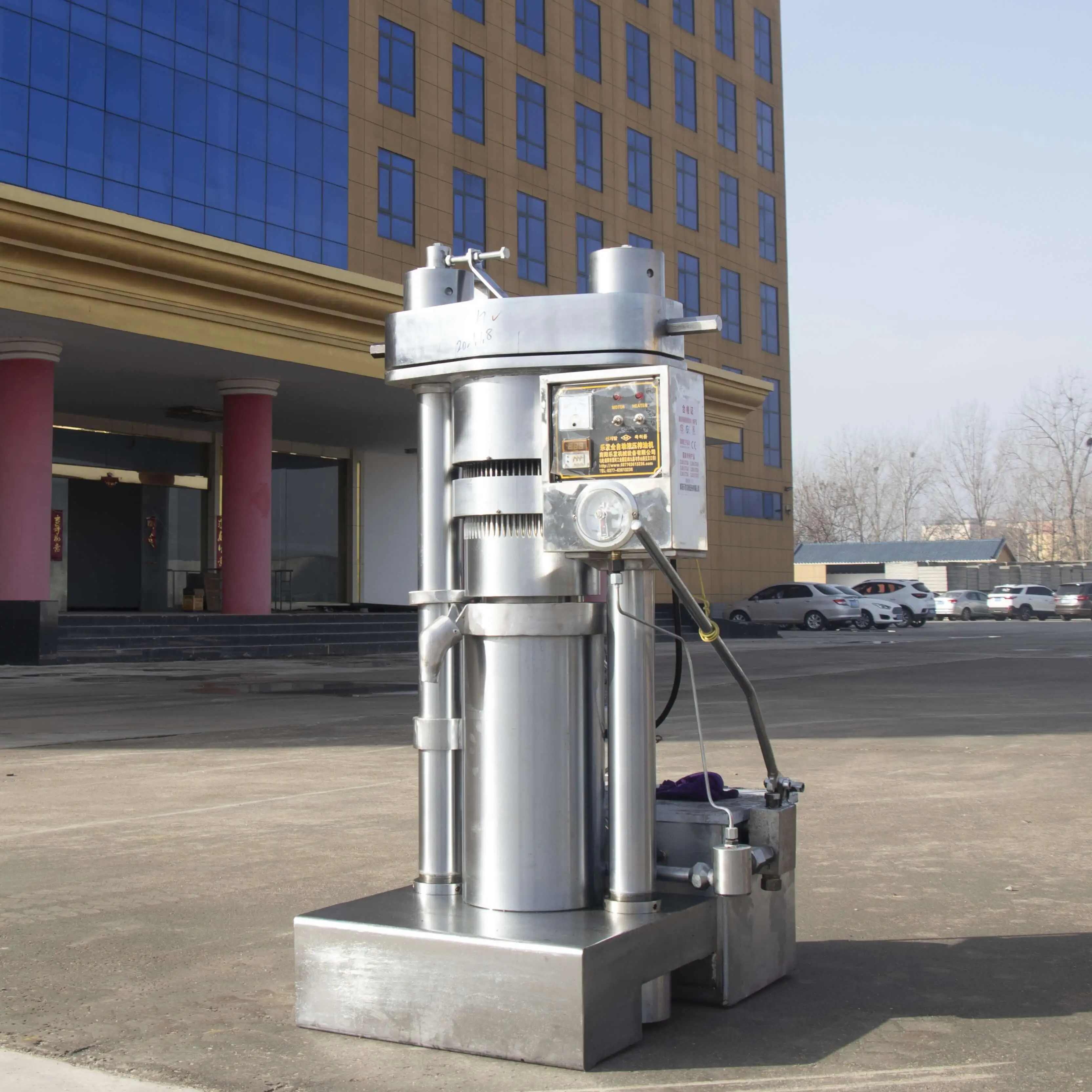

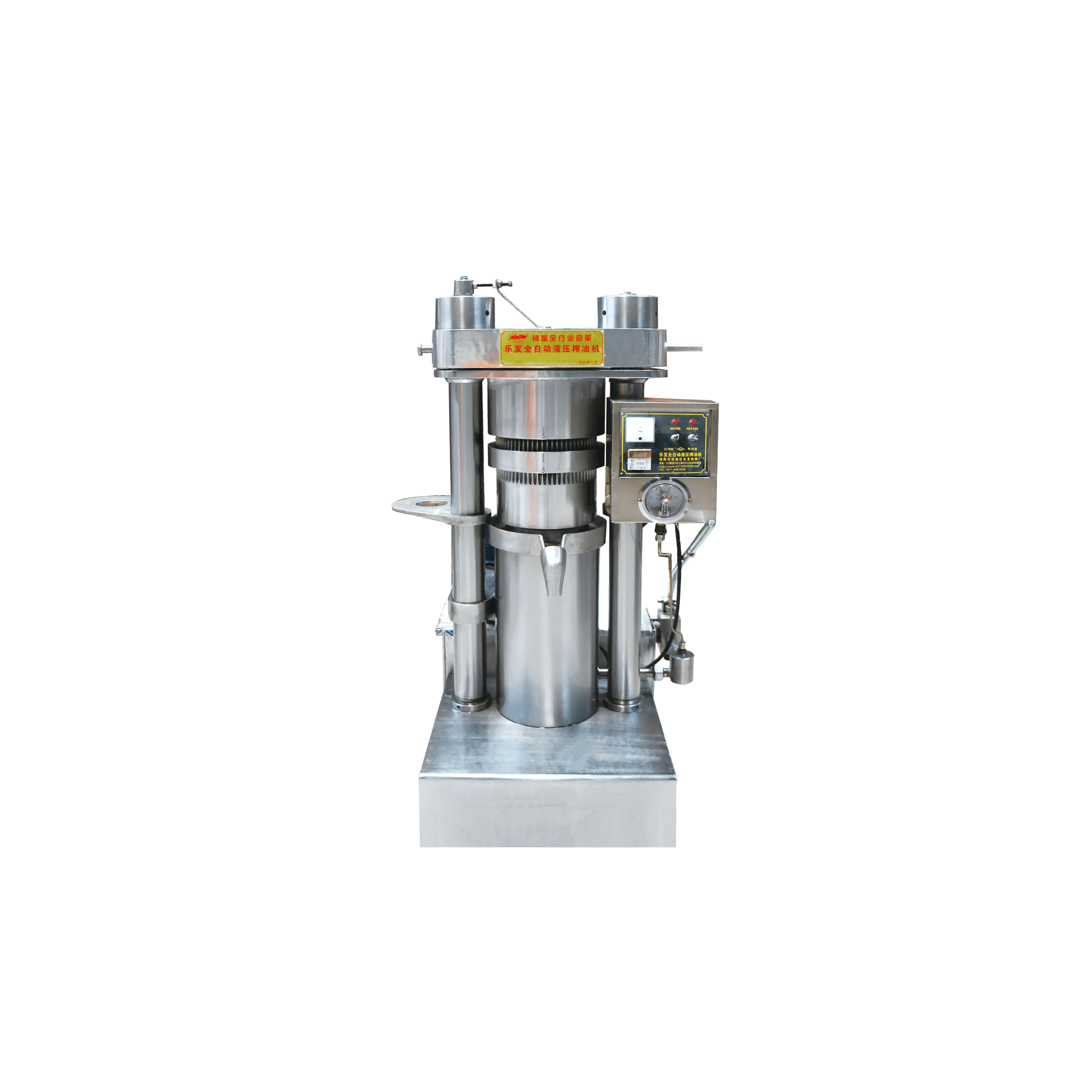

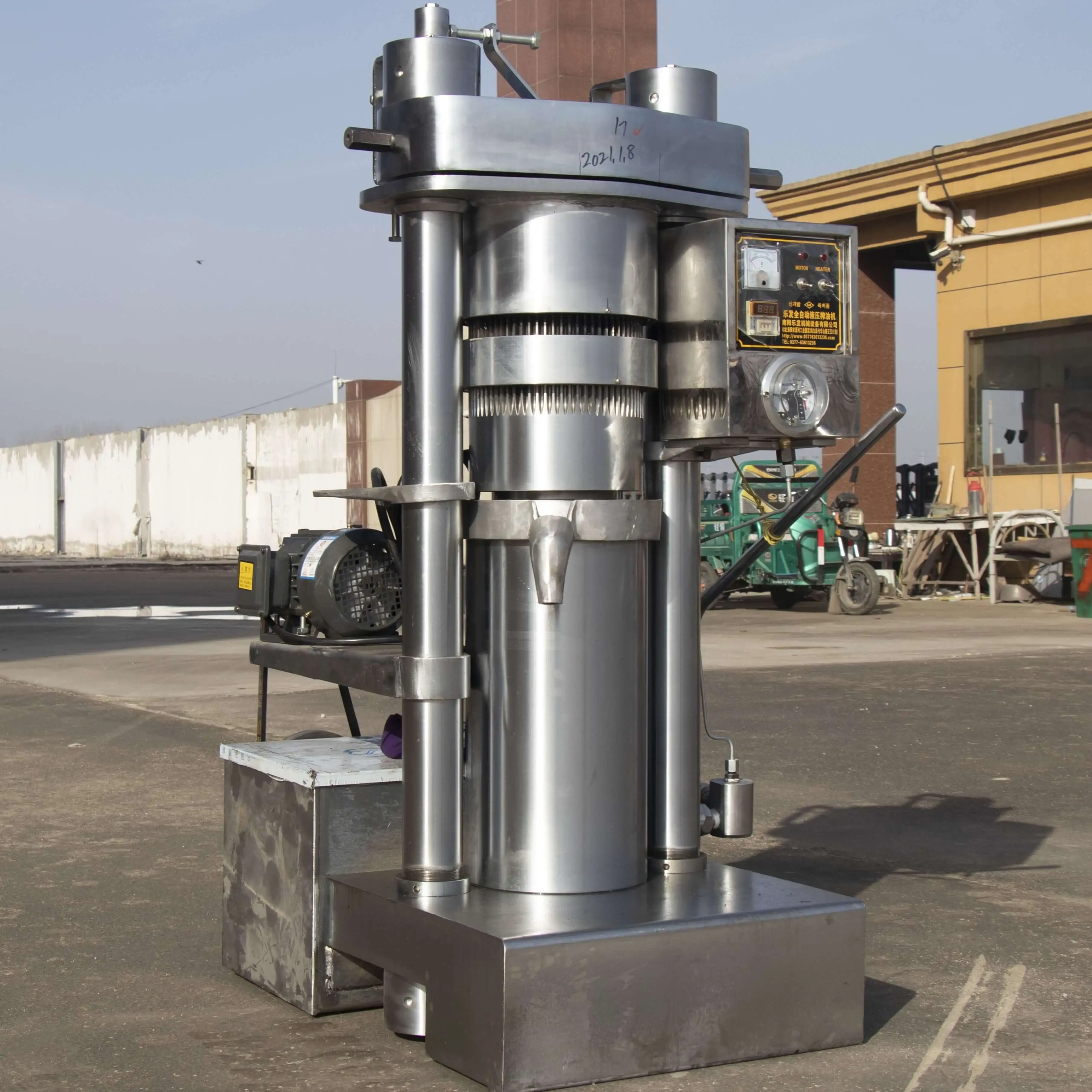

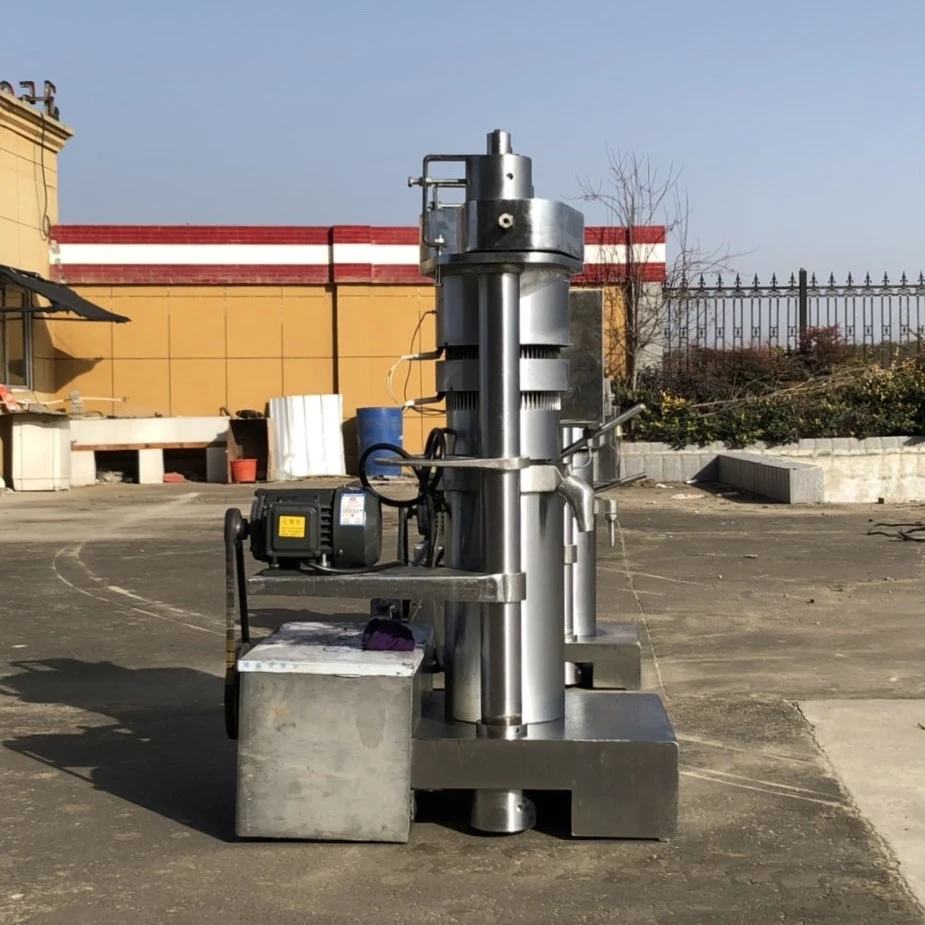

6YY-230A Hydraulic Oil Presser
Model:6YY-230A
Dimensions:670*950*1460mm
Weight:920kg
Power:2.2kw/1.1kw
Voltage:220v/380v
Oil Cake Diameter:230mm
Cylinder Volume:15.3L
Working Pressure:60mpa
Capacity:8.5kg/batch
2.Materials:
Sesame,Peanut,Sunflower,Walnut,Macadamia,Hemp seed,Cocoa bean,Pine nuts,Cashew nuts,Perilla seeds,Safflower seed,Passion fruit seeds,Coconut,Sacha inchi,Prickly ash seedonion seeds,Flaxseed,Rapeseed,Castor,Avocado,Custard apple seeds,Chest nut,Neem,Mango kernel, and so on.
3.Introduction:

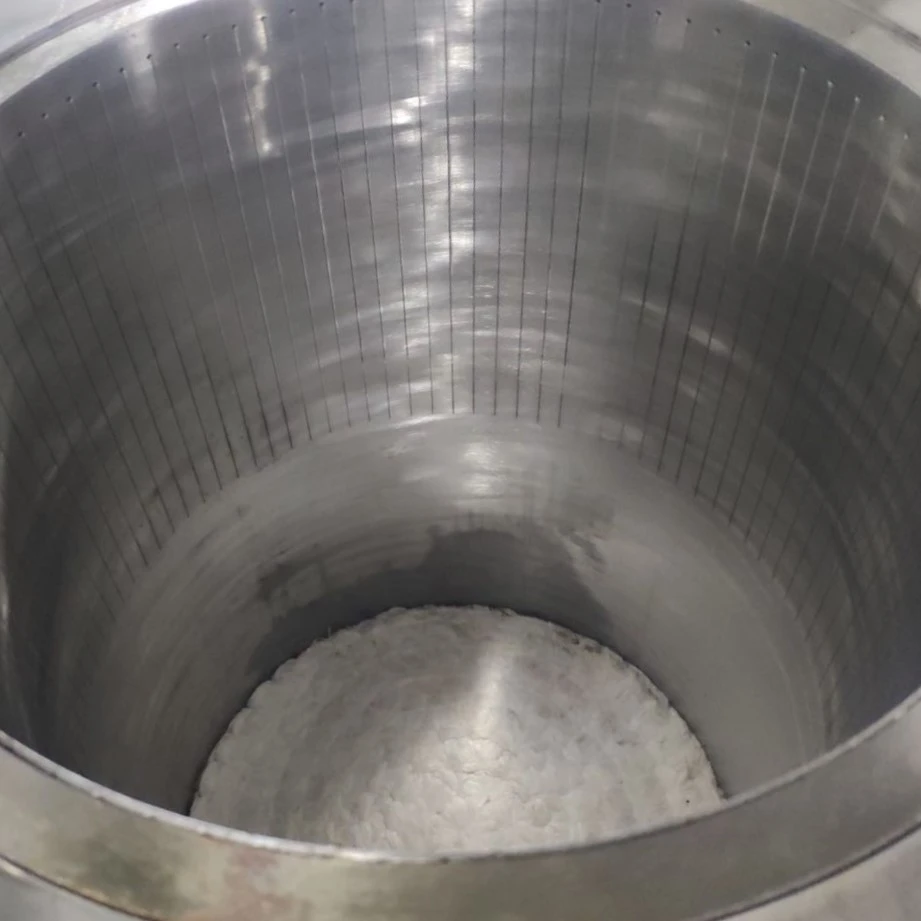

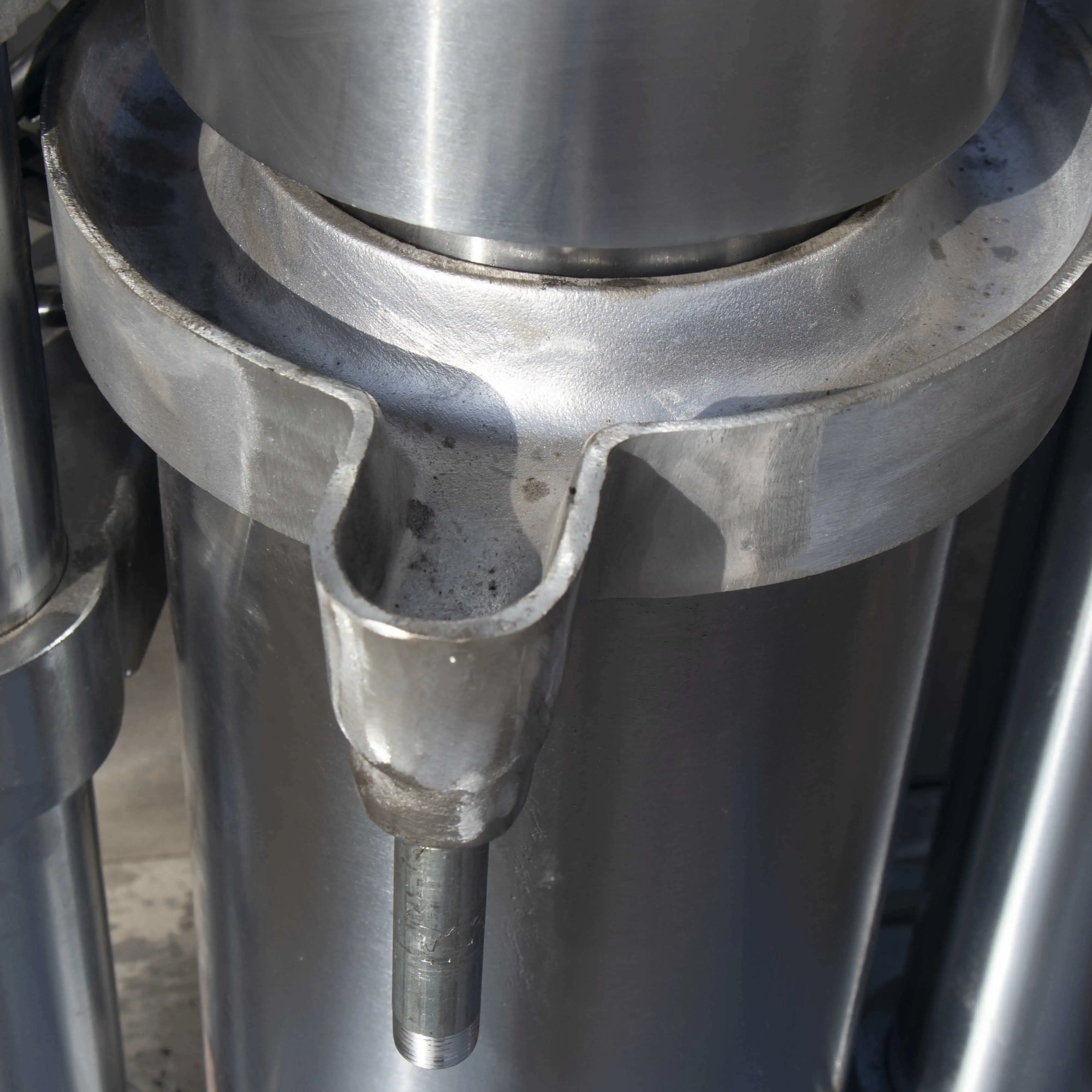

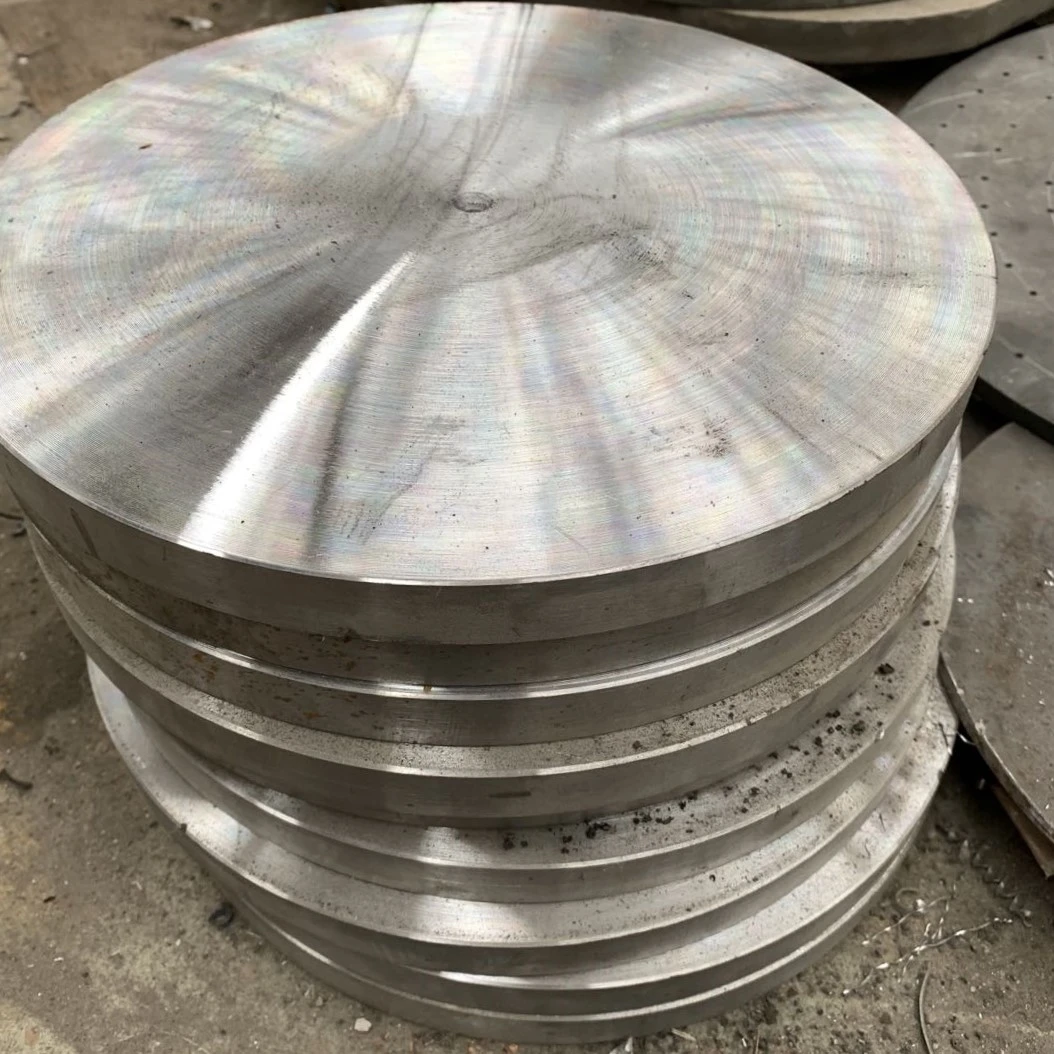

Engineered for maximum efficiency and durability, this oil press model operates reliably on both 380V and 220V power sources. It is constructed with high-strength, electroplated materials and features a high-strength alloy steel top roof for unmatched safety. The machine excels in all-season performance. The barrel design incorporates upper and lower oil lines, increasing flow while maintaining strength. Ideal for processing sunflower, rapeseed, and flaxseed, the resulting high-quality oil cake is perfect for livestock feed or biomass fuel production.
6YY-230A Hydraulic Oil Presser - Professional Oil Extraction Machine
Products Overview
Looking for a reliable and efficient oil pressing solution? The 6YY-230A Hydraulic Oil Presser is your perfect choice for high-quality oil extraction. This professional-grade machine combines progressed pressure driven innovation with user-friendly operation. It conveys uncommon execution for little to medium-scale oil generation. With 28 a long time of fabricating mastery behind it, this water powered oil press guarantees most extreme oil abdicate whereas keeping up prevalent security measures. Whether you're handling sesame, peanuts, or sunflower seeds, this machine ensures fabulous comes about each time.
Our water powered oil press works on both 220V and 380V control sources. This double voltage capability makes it reasonable for different working situations. The machine highlights high-strength development with electroplated materials for enduring durability.
Basic Parameter
| Specification | Details |
|---|---|
| Model | 6YY-230A |
| Dimensions | 670×950×1460mm |
| Weight | 920kg |
| Power | 2.2kw/1.1kw |
| Voltage | 220v/380v |
| Oil Cake Diameter | 230mm |
| Cylinder Volume | 15.3L |
| Working Pressure | 60mpa |
| Capacity | 8.5kg/batch |
Products Features
Features
The product incorporates cutting-edge technology for optimal performance:
Advanced Safety Systems
Features brand-new pressurization technology with two-stage safety protection. This ensures secure operation during all pressing cycles.
Superior Construction
Hard-chrome plated main unit provides uniform appearance and excellent corrosion resistance.
Precision Engineering
High-precision hydraulic cylinder offers exceptional pressure bearing capacity. This guarantees stable and reliable performance throughout operation.
Smart Design
All major components resist deformation under high pressure. This extends machine life significantly.
Quality Electronics
Stainless steel electrical cabinet uses premium domestic components. This reduces failure rates while maintaining attractive appearance.
Flexible Power Options
Works with both 380V industrial power and 220V standard lighting power.
Products Advantages
Our advanced hydraulic oil press represents the pinnacle of pressing technology. It's engineered for maximum oil yield, operational safety, and energy efficiency.
Superior High Pressure Performance: With 60 MPa maximum working pressure, our machine exceeds industry standards. This higher pressure ensures more thorough pressing and remarkably higher oil output.
Intelligent Control System: Smart digital controls allow adjustable temperature and pressure settings. Real-time monitoring ensures optimal pressing conditions for both hot and cold applications.

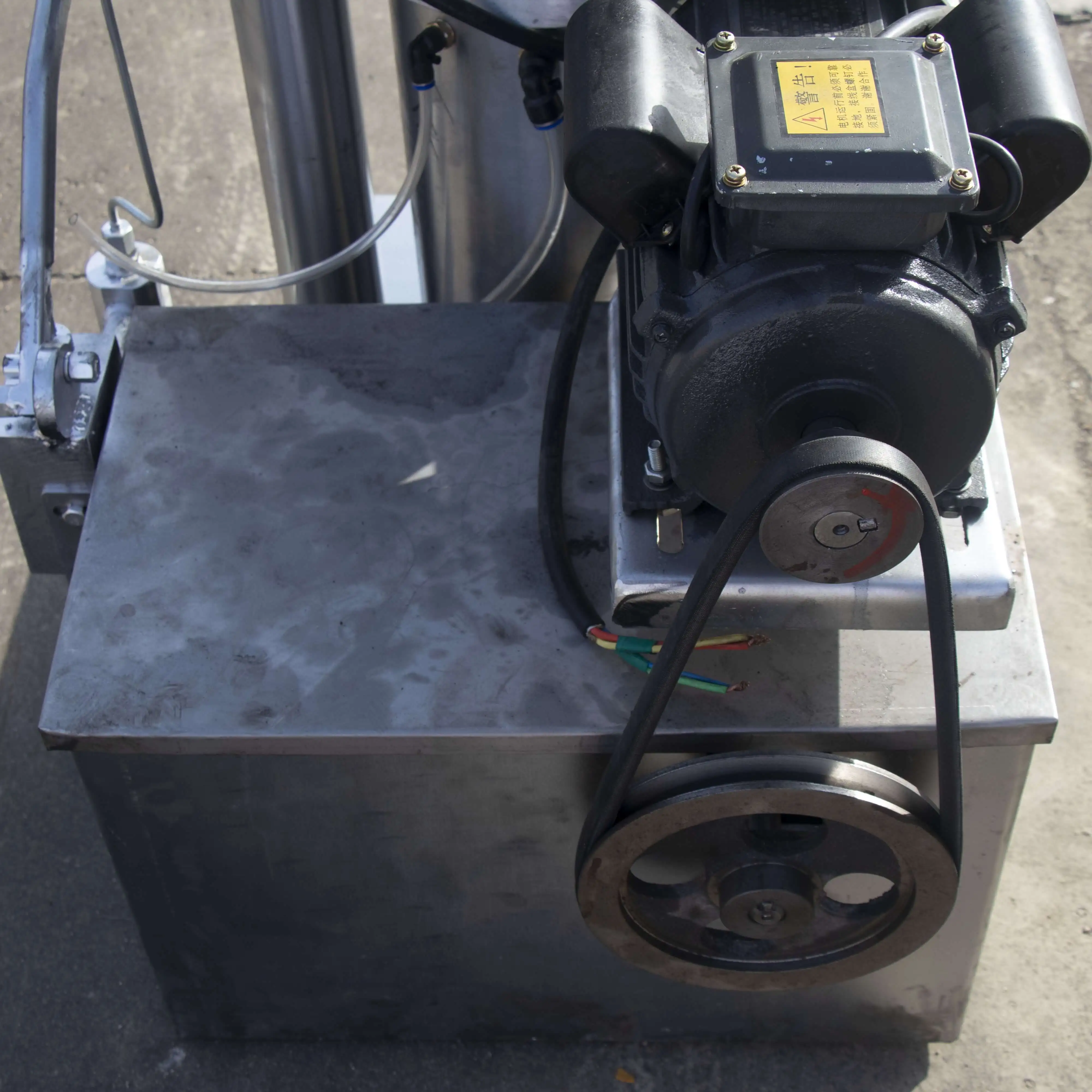

All-Season Efficiency: Internal temperature control components solve winter low-yield problems. Pure copper motor and dual hydraulic pump enable continuous 24/7 operation.
Unmatched Safety Features: High-strength alloy steel construction with comprehensive 5-class safety protection system. Automatic pressure release valves and reinforced components guarantee operator safety.
Premium Oil Quality: High-precision CNC-cut 0.36mm oil lines ensure cooking-grade purity and fragrance.
Cost-Effective Operation: Fewer wearing parts mean reduced maintenance costs. Primary replaceable components include O-rings and seals only.
Materials and Applications
Suitable Raw Materials:
Sesame, peanut, sunflower seeds, walnut, macadamia nuts, hemp seeds, cocoa beans, pine nuts, cashew nuts, perilla seeds, safflower seeds, passion fruit seeds, coconut, sacha inchi, flaxseed, rapeseed, avocado, and many more oil-bearing seeds and nuts.

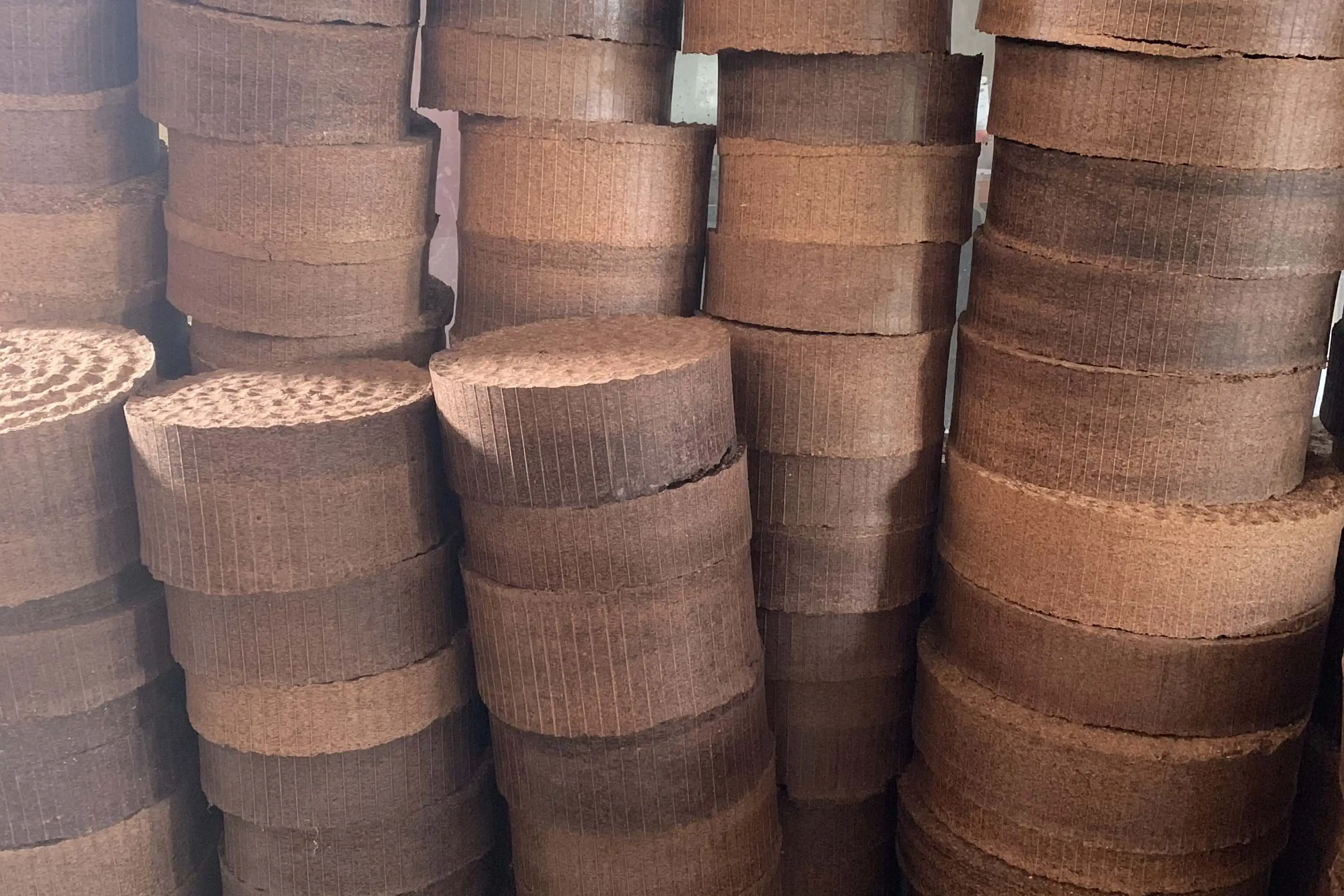

Oil Cake Applications:
- Animal Feed: High-protein supplement for livestock, poultry, and aquaculture
- Organic Fertilizer: Rich in nitrogen, phosphorus, and potassium for soil improvement
- Biomass Fuel: Can be pressed into pellets for energy generation
- Industrial Raw Materials: Source for saponins and plant gums extraction
- Food Industry: Secondary processing into food ingredients and condiments
- The versatile 6YY-230A Hydraulic Oil Presser oil cake provides additional revenue streams for your business.
Quality Control
At Lewin Industrial Development, quality comes first. Our comprehensive quality management includes:
-
ISO 9001 Quality Management System certification
-
National Patent protection (Patent No: ZL200530100110.7)
-
Three-tier inspection process: self-inspection, spot-checking, and final factory inspection
- Rigorous testing before shipment to ensure standard compliance
- Professional quality control team with university-backed R&D support
Every machine undergoes thorough testing to guarantee reliable performance and customer satisfaction.
Maintenance and Repair
Regular Maintenance Guidelines:
- Hydraulic Oil Management: Replace hydraulic oil regularly and clean tank bottom. Use 46# hydraulic oil in winter, 68# in summer. Never mix cooking oil with hydraulic oil.

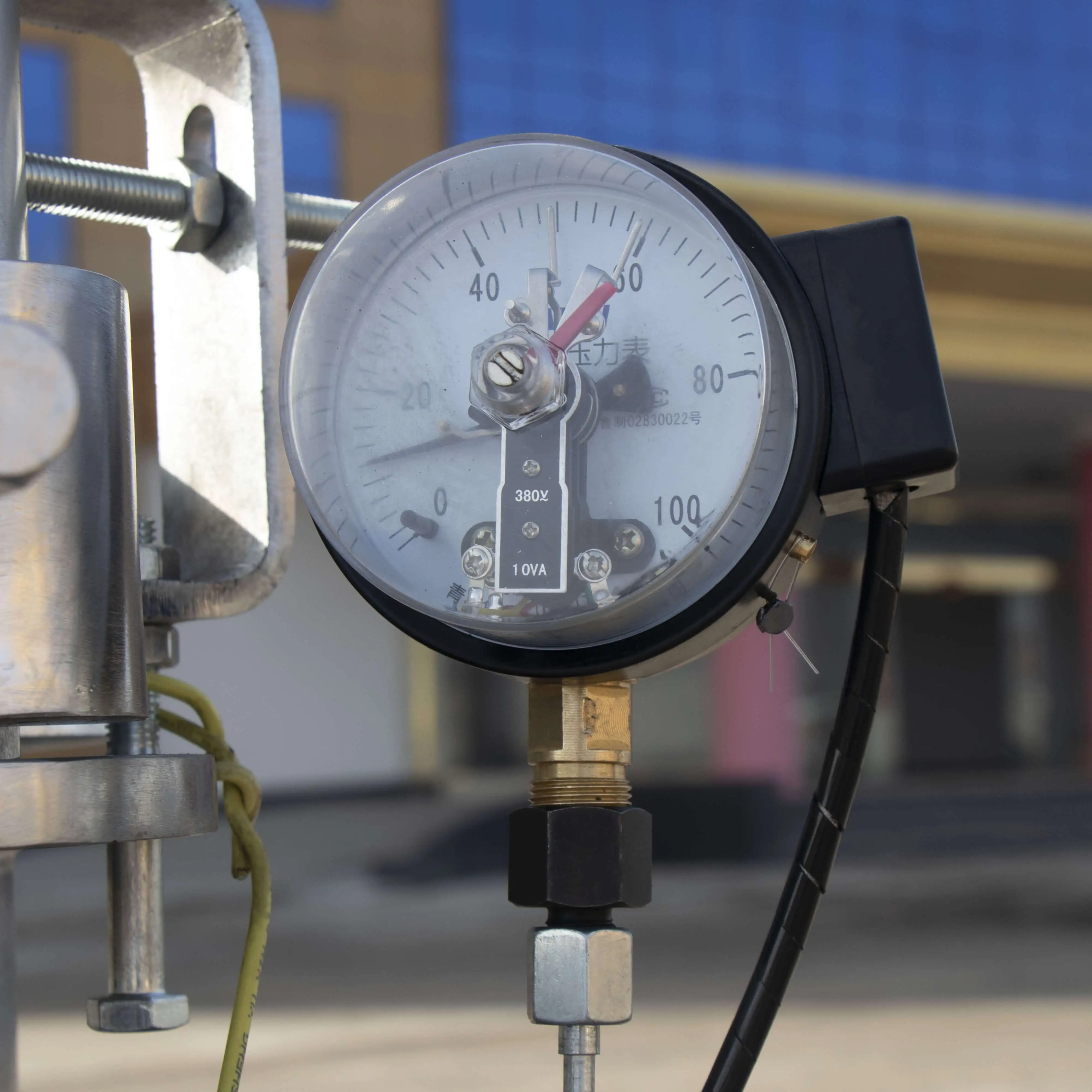

- Pressure System Care: Maintain proper oil pressure levels. Handle pressure gauge replacement carefully to avoid internal damage.
- Cleaning Schedule: Regularly clean oil lines and remove cake residue from internal components.

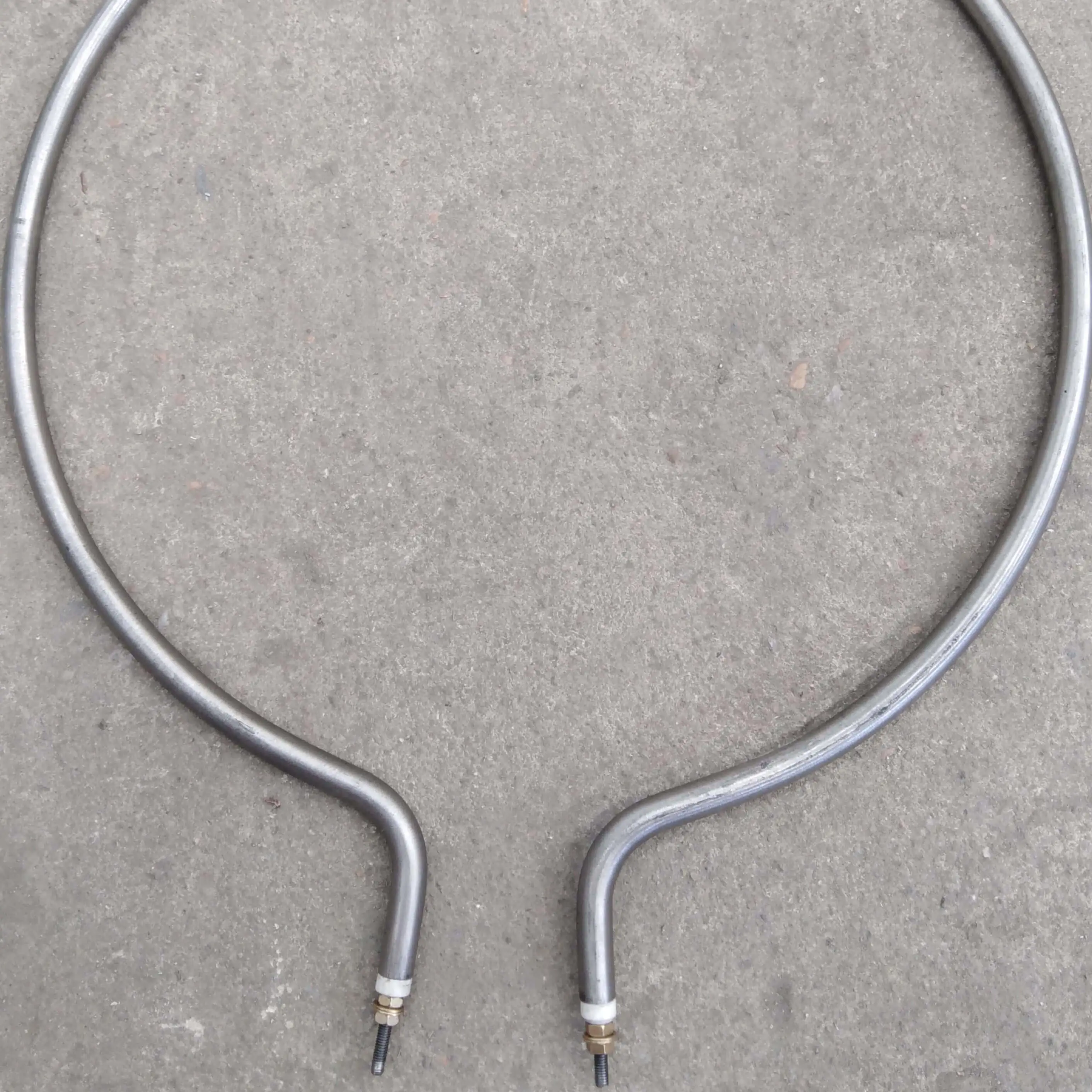

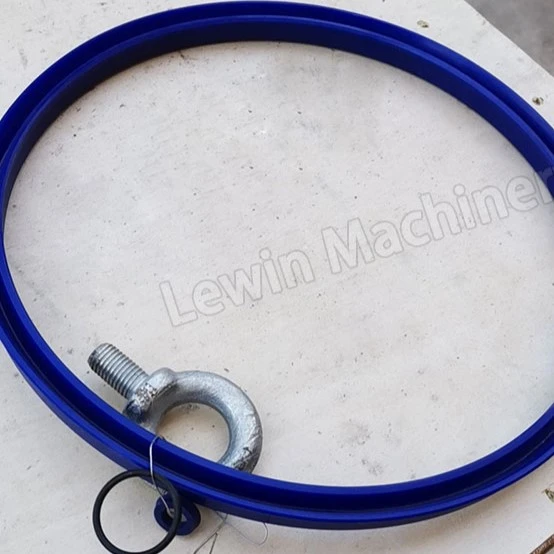

Replacement Parts: O-rings, electric contact pressure gauge, heating tube, cotton pads, and oil seals are the primary maintenance items.
Packaging and Transportation
Packaging: We use waterproof double film and export-standard fumigation-free wooden boxes. Anti-rust oil application prevents corrosion during transport. Custom packaging available upon request.
Shipping Options: We offer sea freight, air cargo, road transport, and express delivery. We partner with DHL, UPS, FedEx, Maersk, MSC, COSCO, and other leading logistics providers for reliable delivery worldwide.
After-Sales Service and Support
Comprehensive Service Package:
- Factory direct pricing with quality guarantee
- One-year warranty with lifetime repair service
- 30-second call pickup with 15-minute emergency response
- Engineer video call diagnosis for real-time troubleshooting
- Field maintenance service available
- Multilingual PDF manuals and YouTube video guides
Installation Support: Our experienced technicians can install your hydraulic oil press on-site.
OEM and Customization Services
We accept customized model requests and welcome factory visits. Our professional design team can create drawings according to your specific needs. With our own factory and independent production capabilities, we ensure the best pre-sales and after-sales service.
University-backed R&D resources keep our products updated with latest market requirements. Our engineers provide technical support for specialized applications.
About Us
Service Philosophy and Company Strength
With over 28 years of manufacturing experience and 21 years of export expertise, Lewin follows the principle of "customer first, quality first, service first." Our efficient team responds quickly to all customer inquiries.
Our goal remains "win-win cooperation and common development." We maintain complete production and sales teams to ensure superior service at every stage.
Factory Area
Talents
Product Categories
Exporting Countries
FAQ
Q: Can this machine handle diverse sorts of seeds?
A: Yes, the 6YY-230A forms different oil-bearing materials counting sesame, peanuts, sunflower seeds, and numerous nuts.
Q: What's the oil abdicate rate?
A: Oil abdicate shifts by fabric, but our 60 MPa weight guarantees most extreme extraction compared to standard machines.
Q: How often should I replace hydraulic oil?
A: Regular replacement recommended - use 46# oil in winter, 68# in summer. Clean the tank bottom during each change.
Q: Is training provided?
A: Yes, we provide comprehensive training materials, video guides, and technical support for operation and maintenance.
Contact Us
Ready to enhance your oil production with the 6YY-230A Hydraulic Oil Presser? Our team stands ready to help you choose the perfect solution for your needs.
For detailed quotations, technical specifications, or custom requirements, reach out to our expert team. We're committed to providing exceptional service and supporting your success in oil production.
